RAM® Tab-Tite™ Yoke Clamp Mount for iPad Gen 1-4

stoc furnizor

Industry: Aircraft, Wheelchair
Device: Tablet 10″, iPad 2, iPad 3, iPad 4
Function: Round Rail, Temporary Clamp
Solution Type: Mount with Holder
Holder: Tab-Tite
Features: Fits Tablets WITHOUT Case, Fits Tablets WITH Case
Product_Line: Tab-Tite
Ball Size: B size 1” (Holds up to 5 lbs)
Material Finish: Marine-Grade Aluminum, High Strength Composite

SKU: RAM-B-121-TAB3U Categorii: ,

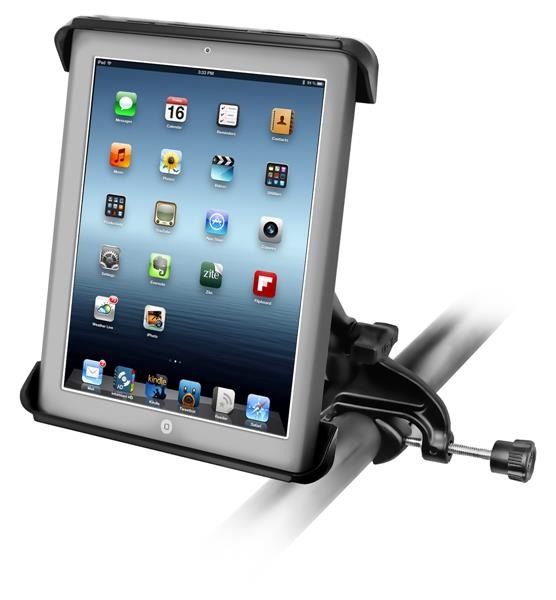

The RAM-B-121-TAB3U consists of a yoke clamp base, double socket arm, round base adapter and Tab-Tite universal clamping cradle. The clamp base will accommodate rails in diameter from 0.625″ to 1.25″. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded Tab-Tite cradle makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Clamp Base Dimensions:
  • Accommodates rails from 0.625″ to 1.25″ in diameter
Cradle Dimensions:
  • Height: 8.5″ to 11.125″
  • Width: 6.38″ to 7.75″
  • Depth: 0.13″ to 0.56″
  • Material:High Strength Composite and Powder Coated Marine Grade Aluminum
  • Ball Size:B Size 1″ Rubber Ball
  • Note:The „U” in the part number reflects product packaged in poly bag.
  • Weight:1.3 lbs.
