Hole Pattern:
AMPS 4-Hole Pattern3-Hole 120 Degree (Large)
Solution Type:
Material Finish:
Vehicle Mount Component:
Upper Pole


The RAM Tough-Box™ angled multi-length console provides multiple length choices using just one console model. This special design does not require any special tools. A vast number of applications can be fitted with a single console solution. Never before have installers been afforded this level of freedom or a solution as simple and innovative. Efficiency being the driving force behind this product, money will be saved in installation time, servicing of electronics mounted in the console, and on fuel given the strong yet lightweight design. Compatible Vehicles: Ford Crown Victoria Police Interceptor (1991-2011)Features: 1. Combination of rugged materials to create the ultimate in toughness and industry leading light weight design. 2. First molded console in the industry. 3. Cut to length feature allows the installer unmatched options. One part number can be made to fit a wide range of vehicle sizes. 4. No sharp edges or corners insure occupant safety and provide a state of the art appearance. Tight seams equal no more lost cards or licenses. 5. High quality materials and finish ensure a long product life and corrosion resistance backed by renowned NPI lifetime warranty. 6. Modular design allows for almost unlimited installation options. 7. Several knockout panels on each side for 12V or cigarette adaptors. 8. Large contoured tunnel pass through at each end of console for trouble free wiring. 9. Light mount hole pattern available on both passenger and driver side of console. 10. Molded and stamped mounting holes allow for extreme ease of assembly and installation. 11. Mounting holes in bottom of console work with several other manufacturers’ top plates. 12. Compatible with 1” and 1 1/2” pedestal systems. 13. Die Cast faceplates are rigid and tough, not flimsy and flexible. No welds to break! 14. Integrated hole patterns such as AMPS, VESA, as well as RAM specific ensure endless mounting possibilities and the ultimate in versatility. 15. An installers dream, the new RAM Twist Out™ feature allows for quick access to radios or switches making change-outs or repairs simpler than ever. Included with Purchase: Console Box, Female Tele-Pole™ Assembly Mounting Tubes and Custom Back Fairing Material: High Strength Composite, Aluminum and SteelNote: This angled console box contains two female tele-poles™ that are mounted flush to the box, allowing for attachment of upper tele-poles™, swing arms and laptop/tablet/netbook holders.

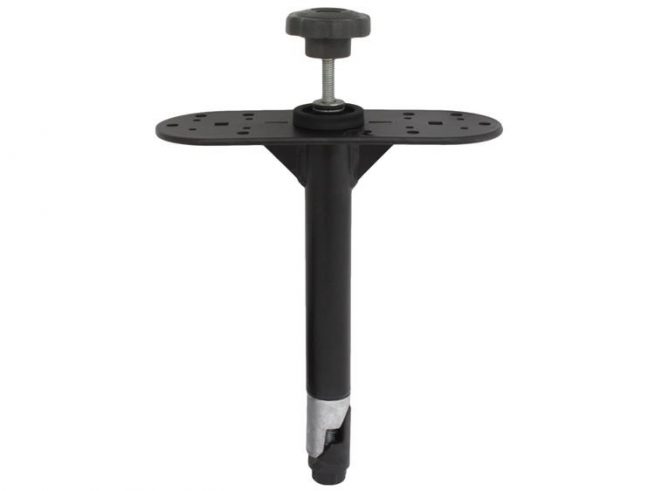

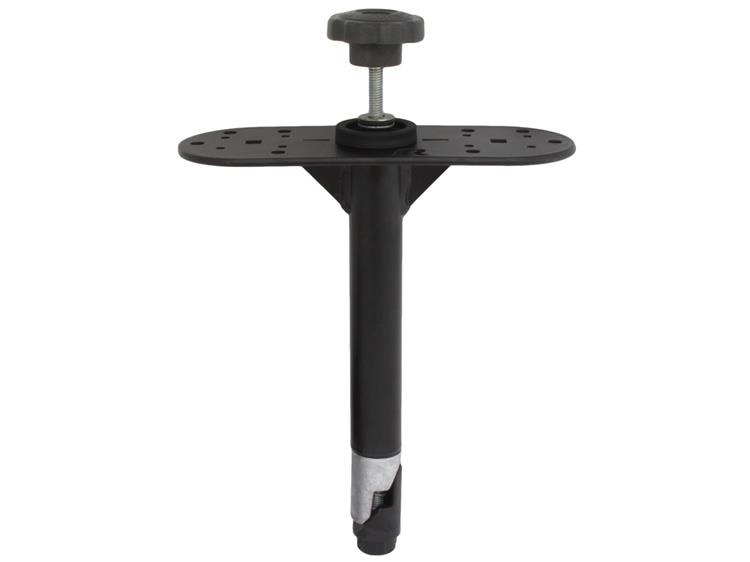

The RAM-VP-TTMFD8U consists of a 8″ dual flange plate, connected to a 8″ male Tele-Pole™. The flange plate has dual mounting points for swing arms, AMPS hole pattern bases, and the RAM 120 degree hole pattern. Common applications include mounting a display with keyboard, a handheld mobile computer with portable printer or similar device combination. The male Tele-Pole™ is 8″ long and has a diameter of 1.328″.

Hole Patterns:
1. (2 quantity) AMPs hole pattern
2. (2 quantity) Two holes at 180 degrees
3. (2 quantity) Three holes at 120 degrees
Included with Purchase:
8″ long dual flange, threaded rod, knob and washer assembly, as well as hardware to attach a double or single swing arm to the flanges and two sets of hardware to attach the RAM-202U to the flanges.
The „U” in the part number reflects product packaged in poly bag.
2.9 lbs.
