Descriere

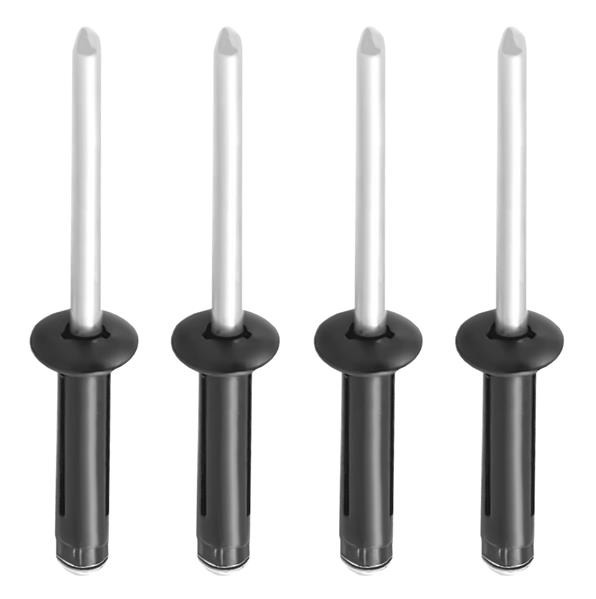

he RAM-MARI-RIVET-4U consists of (4 qty) aluminum 1/8″ pop rivets for blind hole mounting applications.Grip Thickness: 1/16″ to 1/4″ Installation Instructions: 1. Locate RAM base to desired mounting location, drill holes with 7/32″ drill. 2. Place Mari-Rivet™ body all the way through RAM base and pre-drilled 7/32″ holes until flange is firmly secured against mounting surface. 3. Insert rivet gun over mandrel head. 4. Clamp rivet gun; this will initiate the jaws to retract, extracting the mandrel, which pulls the mandrel head into the rivet body setting the rivet. At a predetermined tensile load, the mandrel breaks from its head and is discarded. Note: The „U” in the part number reflects product packaged in poly bag. Related Links:RAM Mari-Rivet™ & Mari-Nut™ ProductsRAM Kayak Mounts
Grip Thickness:
1/16″ to 1/4″
Installation Instructions:

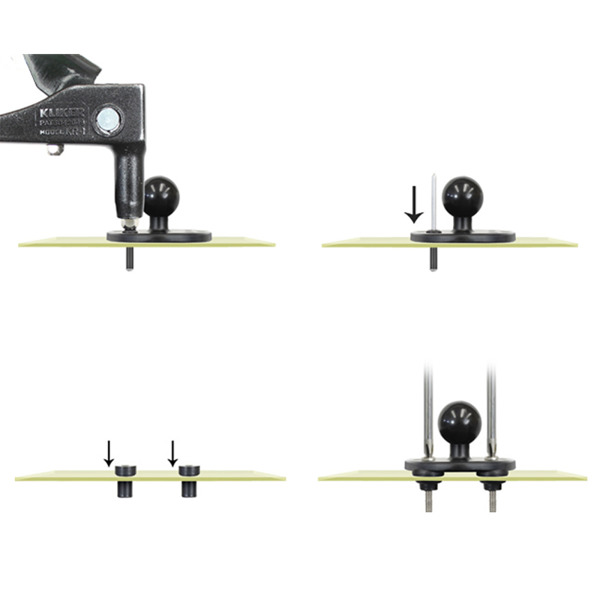

1. Locate RAM base to desired mounting location, drill holes with 7/32″ drill.
2. Place Mari-Rivet™ body all the way through RAM base and pre-drilled 7/32″ holes until flange is firmly secured against mounting surface.
3. Insert rivet gun over mandrel head.
4. Clamp rivet gun; this will initiate the jaws to retract, extracting the mandrel, which pulls the mandrel head into the rivet body setting the rivet. At a predetermined tensile load, the mandrel breaks from its head and is discarded.
Note:
The „U” in the part number reflects product packaged in poly bag.
Weight:
0.04 lbs.
